How to solder pogo pins?

POGO PIN is a very commonly used electronic connector which consists of a turning needle tube, a turning needle and a compression spring. It keeps the needle in the needle tube and relies on the spring to provide contact force to establish an electrical connection between the needle and the mating parts. I believe many people do not know how the pogo pin is soldered. So let's follow ZLD to understand how the pogo pin is soldered on the PCB board?

First of all, let us introduce the pogo pin types to you. There are many types of pogo pins, including upright pogo pins, side pogo pins, double-ended pogo pins, standard pogo pins, etc. Its function is very large, and installation is very important, so what are the installation methods of pogo pins ?

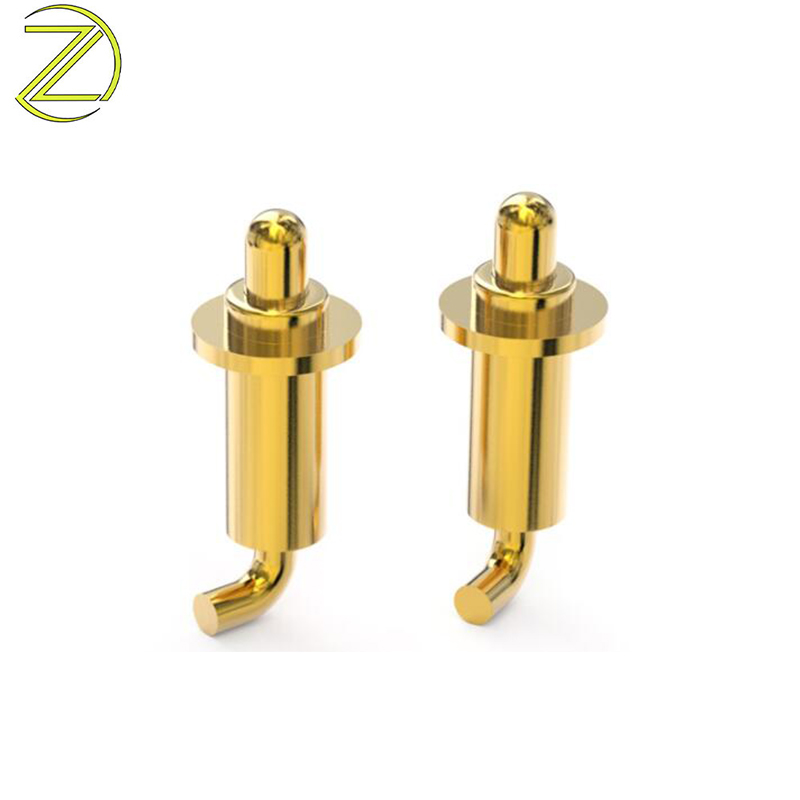

Right-angle solder tail: The tail is bent plug-in encapsulation, allowing designers to have more choices in the use of space.

Straight solder tail: normal plug-in encapsulation, easy to solder.

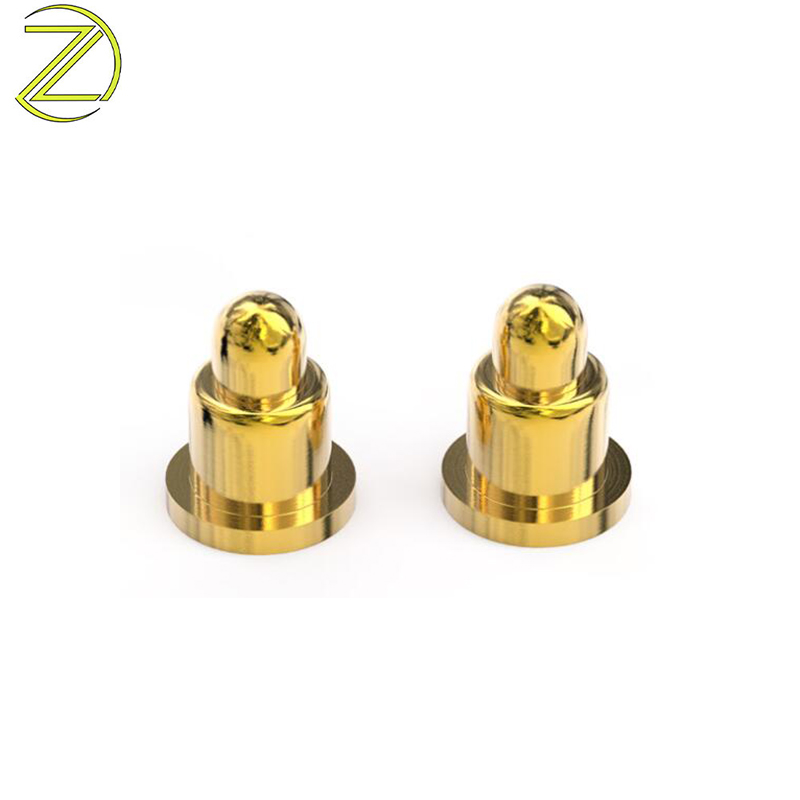

Surface Mount (SMT): Good stability, the bottom of the needle tube is a flat-bottomed design, can be vertical or horizontal installation, easy to solder with PCB board. Some needle tubes are equipped with positioning pins at the end, which will not cause offset when soldering with PCB board, and the positioning effect is good.
