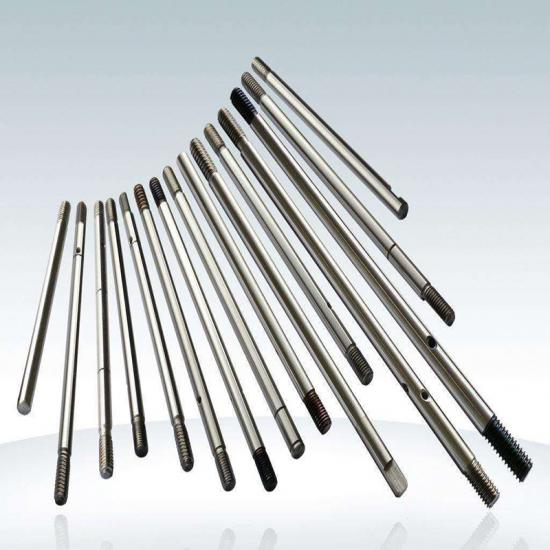

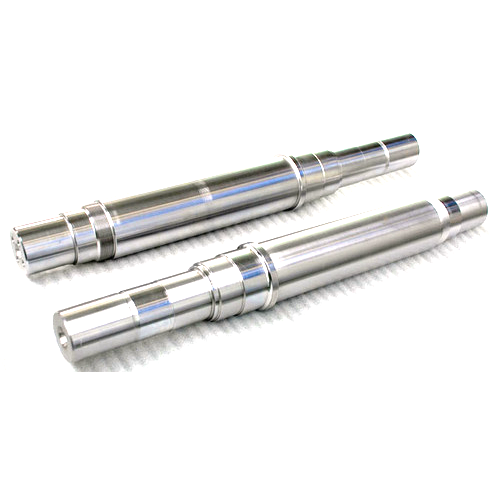

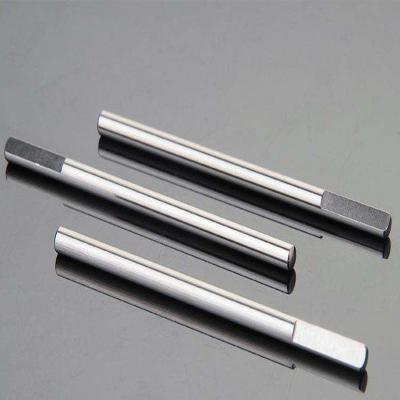

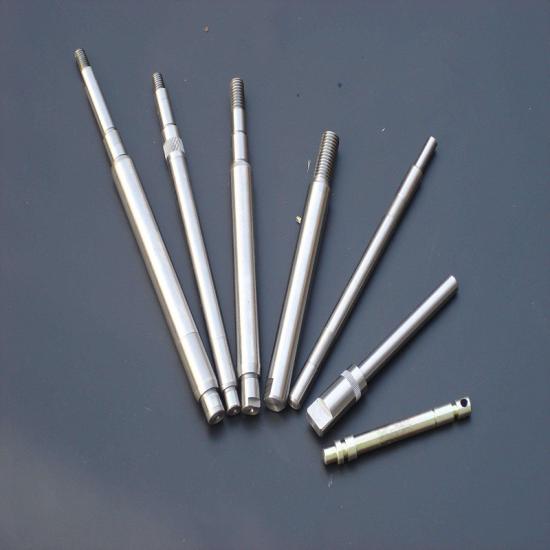

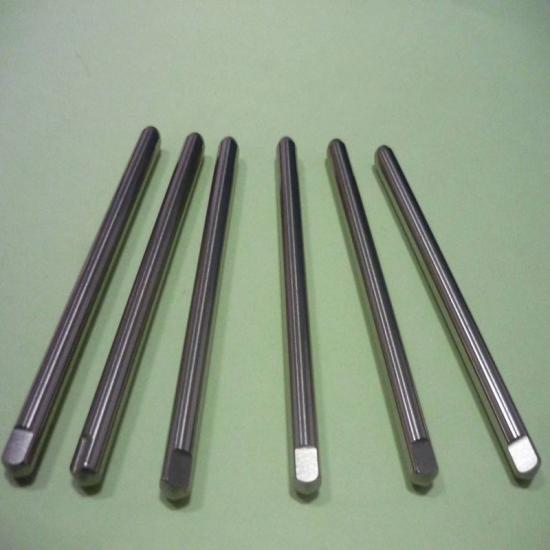

Servo motor shaft DC motor shaft permanent magnet motor shaft asynchronous motor shaft DIY industrial household

The shaft is an important part in the motor. It serves as a link for the electromechanical energy conversion between the motor and the device. It supports rotating parts, transmits torque, and determines the relative position of the rotating parts to the stator. Therefore, the motor shaft must have reliable strength and rigidity to ensure the realization of the preset design function. Our CNC machining lathe machining shaft products have the advantages of high precision, high quality and high efficiency. After return treatment, passivation, plating and other surface treatment technologies, the products are more durable.

Item NO.:
ZLD-MS-02
Order(MOQ):
1
Product Origin:
China
Specifications:
Custom Made
Thread Size:
Custom Made
Material:
Custom Made
Surface Treatment:
Custom Made
Processing Methods:
CNC Turning
Certification:
ISO9001/IATF16949

Inquiry now

Product Detail

1. Product Overview

Xiamen Zhonglida Machinery Co., Ltd. specializes in the production of various types of precision shafts such as motor shafts and motor shafts. The motor shafts processed and produced by our factory have a high degree of precision, mostly alloy steel, carbon steel, stainless steel, stainless iron materials, according to customers. The drawings and samples require oxidation, blackening, electroplating, polishing, black matt treatment, sand blasting and other treatments. Our factory has strict inspection standards, a strong QC team, and raw materials can only be put into storage after inspection. During the production process, there are first inspection, patrol inspection, random inspection and 100% factory inspection to ensure quality from the source. Our factory The pass rate of the motor shaft is as high as 99.9%. The motor shafts of our factory are exported to many countries overseas, and are widely used in household appliances (air conditioning), automotive industry, fitness equipment (treadmills), cleaning equipment, medical equipment and other fields, and have received high praise and trust from customers at home and abroad.

2. Production capacity

CNC lathe processing: Φ5mm-Φ60mm*700mm

CNC milling machine processing: 800mm*1500mm*700mm

Product	Metal shaft
Certificate	ISO9001：2005，IATF16949,China Classification Certification
Material	Alloy steel, carbon steel, stainless steel, stainless iron
Surface treatment	Oxidation, blackening, electroplating, polishing, black matt treatment, sandblasting
Testing equipment	Projector, roughness tester, thread pitch measurement, caliper, micrometer, lever micrometer, micro-thread caliper, gauge, Rockwell hardness tester, Vickers hardness tester, caliper gauge, gear testing center, roundness tester, Yaw pendulum gauge, only pass gauge, high gauge, thread gauge, etc.
Processing Equipment	CNC machining center, CNC lathe, CNC milling machine, cylindrical grinding machine, centerless grinding machine, CNC grinding machine, automatic lathe, grinding machine, punching machine, welding machine, drilling machine, tapping machine, wire cutting, thread rolling machine, CNC hobbing machine, super-precision surface Machine etc.
Drawing format	PDF, dwg, CAD，JPG, Solidworks
Production capacity	100，000 Pc/Month
Size range	OD: Φ4mm-Φ50mm, length ≤700mm
Application field	Fitness equipment, automobiles, air conditioners, household appliances, office appliances, medical equipment, etc.
Package	Plastic bag + carton + (pallet), plastic bag + wooden box, according to customer requirements
Delivery time	Sample: 10-15 days; batch: according to order quantity

Common material processing

Stainless steel	SS201，301，304，SS303，SS304，SS316
Carbon steel	20#，35#，45#
Stainless steel	1Cr17，2Cr13，3Cr13，6Cr13，7Cr17
Commonly used alloy steel	35CrMo，20Cr，40Cr，40CrMo，42CrMo，20CrMnTi，20CrMMnMo
